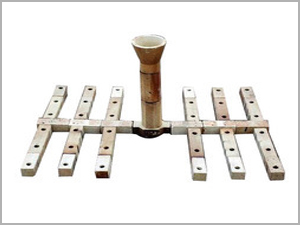

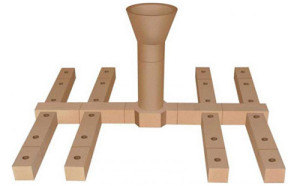

With time, as the technology is moving ahead, whether in the field of pharmaceuticals, medical, food and cooking industry, industrial or Health care industries, something in each field has changed in order to cope up with the technology. Bottom pouring sets (BP sets) are shapes made from different refractory grog, plastic fire clays, and non plastic clays. The fractions of these raw materials are pugged and are mixed for complete homogeneous mixing.

The mixture obtained is then pressed in high capacity presses to give it desired shapes and sizes. These sets are generally made in two qualities, 30% alumina and 40% alumina. If required, these sets can also be made in high alumina grades. The sizes available for different qualities of Bottom Pouring Sets are Duplex 3 x 4,  Duplex 3.5 x 4.5, Duplex 4 x 5, Duplex 5 x 6 and H Plate. The pressed shapes are later fired in tunnel kiln at very high temperatures of nearly 1300 C.

Characteristics and Special Features :

  • Varied size and shapes
  • Minimizes the deposits of carbon
  • Increased lifespan of bricks
  • Withstands high temperatures based on the quality
  • Better resistance to thermal shocks
  • Perfect in appearance
  • Withstands temperatures up to 1450 degrees.
  • These sets are completely resistant to high level abrasion

Ravani Ceramics are fastest growing manufacturers and exporters in the country with superior quality services and products and best performing bottom pouring sets. The bottom pouring sets are passed through different processes.

General Specifications :

Details 30% Alumina 40% Alumina
Safe working temperature 1400 C 1450 C
Bulk Density 2Gms/cc 2Gms/cc
Alkalies Trace Trace
P.C.E (Orton cone) 30 32
RUL 1300 ta0 C min. 1400 ta0 C min.
Apartment Porosity 30% max 30% max.

We aim at consistently maintaining high quality standards and an environment of Total quality management where all the 3 R’s i.e. Right quality, right service and right price is fulfilled. These bottom pouring sets are hollow in shapes and are conforming to Is:6 OR IS:8 and are processed as per the specifications mentioned in IS: 1387-1967
